TOF Rapid Response Time Of Flight Distance Sensor For Short Range

Brand Name : JRT

Model Number : IT02S

Certification : CE ,ISO9001,ROHS, FCC ,FDA.

Place of Origin : Chengdu China

MOQ : 1

Price : Please contact us

Payment Terms : T/T, Western Union, Pay pal

Supply Ability : 10000 pcs/day

Delivery Time : 1-3 working days

Packaging Details : neutro-packing

PRODUCT NAME : JRT Time Of Flight Industrial Laser Distance Sensor High Frequency

Measuring Distance : 12m

Output : Digital Sensor

Laser type : Class II

Power supply : AAA batteries

Function : Distance /Height/Width

Contact Now

TOF Rapid Response Industrial Laser Distance Sensor Short Range

Product Description:

IT02S is a new generation of ultra-small single-point ranging laser radar module developed by our company. It has fast measurement frequency and allows you to measure moving objects. If you need to measure the bevel, round face, the measurement can only be made when the target area is large enough to accommodate the laser spot. This laser ranging product can help sweeping robots, drone obstacle avoidance, safety inspection, material management and so on. Welcome your inquiry to buy.

Industrial Laser Distance Sensor Feature:

1. Stable performance, high and low temperature resistance -10~+50°C;

2. Small size, easy to install and support, continuous measurement;
3. UART serial output, easy to use.


Specifications of Industrial Laser Distance Sensor:

Model Number	IT02S
Measuring Distance	0.1-10m @90% reflectivity
Frequency	100Hz
Accuracy	4cm @90% reflectivity
Absolute Accuracy	90% reflectivity:8cm @ within 7m
Blind Area	10cm
Resolution	1cm
Light	650nm, <1mw,red,class 2
Resistance to Light	10000 LUX
Working Voltage	DC +3.3V,
Operating Current(@100Hz)	51mA(2)
Power(@100Hz)	168 mw(2)
Working Temperature	0-40 ℃(regular)
Serial level	TTL 3.3V
Size	46177mm
Weight	10g

FAQ:

Q1: What are the advantages of TOF ranging products?
A1: The most prominent feature is the high measurement frequency. If you need to measure moving objects, then TOF is the right product for your needs.
Q1: How about your after-sales protection?
A2: We provide one year warranty and lifetime technical support. You can always consult us if you have any questions about product use and product maintenance.

Details:

TOF Rapid Response Time Of Flight Distance Sensor For Short Range

Product Tags:

laser length measurement sensor

high speed laser sensor

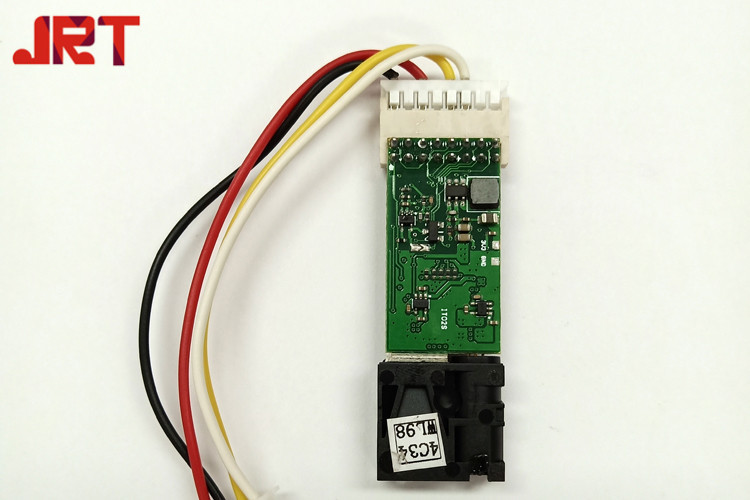

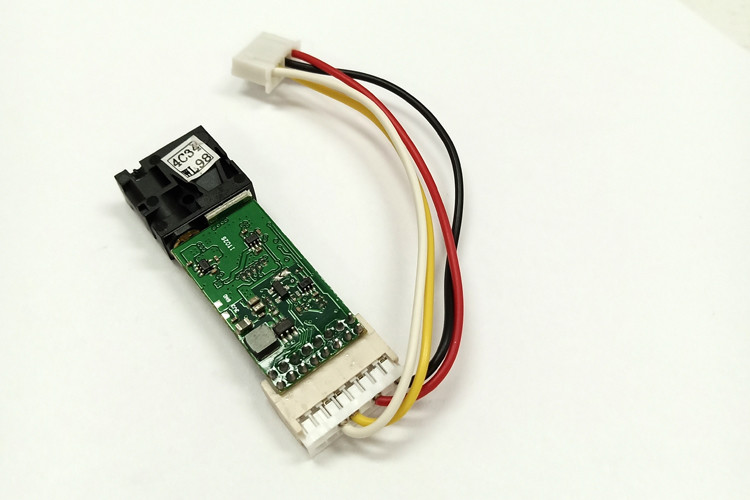

TOF Rapid Response Time Of Flight Distance Sensor For Short Range Images
