100Hz Frequency TOF Sensor , Continual Measure Time Of Flight Sensor Long Range

Name: 100Hz Frequency TOF Sensor Continual Measure Time Of Flight Sensor Long Range
Brand: JRT/OEM
Price: 1 USD

Brand Name : JRT/OEM

Model Number : IT02S-2

Certification : CE,ISO9001,ROHS, FCC,FDA.

Place of Origin : Chengdu, China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, Pay pal

Supply Ability : 10000 pcs/day

Delivery Time : 1-3 working days

Packaging Details : neutro-packing

PRODUCT NAME : 100hz high frequency tof sensor

Measuring Range : 1cm-12m

Frequency : 100Hz

Laser Type : 650nm, <1mw,red

Size : 46*17*7mm

Weight : About 4g

Contact Now

10m tof sensor continual measure time of flight sensor

Some Questions For You:
Q: Can I use it in continual measure mode?
A: Yes. JRT's time of flight sensor supports continual function.

Q: How much is the tof sensor accuracy?
A: The accuracy range is 2cm~ 4cm, for specific accuracy, it will be affected by your using environment.

Q: How can I output the measurement data?
A: Tof sensor support serial interface with RX TX.

Parameters:
Accuracy: 2cm-4cm @90% reflectivity
Resolution: 1cm
Measuring Range: 0.1-10m@90% reflectivity
Frequency: 100Hz
Laser Class: Class II
Laser Type: 650nm, <1mw,red
Size: 46*17*7mm
Weight: About 4g
Voltage Working range: +2.7V~+3.6V
Electrical Level: TTL/CMOS
Communication interface: UART,115200bps(default)
Operating Temperature: 0-40 ℃
Storage Temperature: -25~60 ℃

100Hz Frequency TOF Sensor , Continual Measure Time Of Flight Sensor Long Range

Services: OEM SERVICES, APPLICATION DEVELOPMENT, CUSTOMIZED SENSOR MODULES MEASUREMENT PROJECTS.

Product Tags:

time of flight distance sensor

time of flight sensor long range

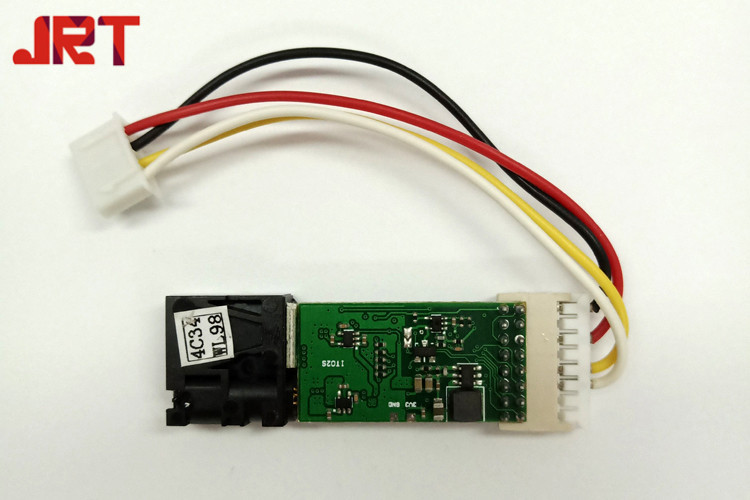

100Hz Frequency TOF Sensor , Continual Measure Time Of Flight Sensor Long Range Images
